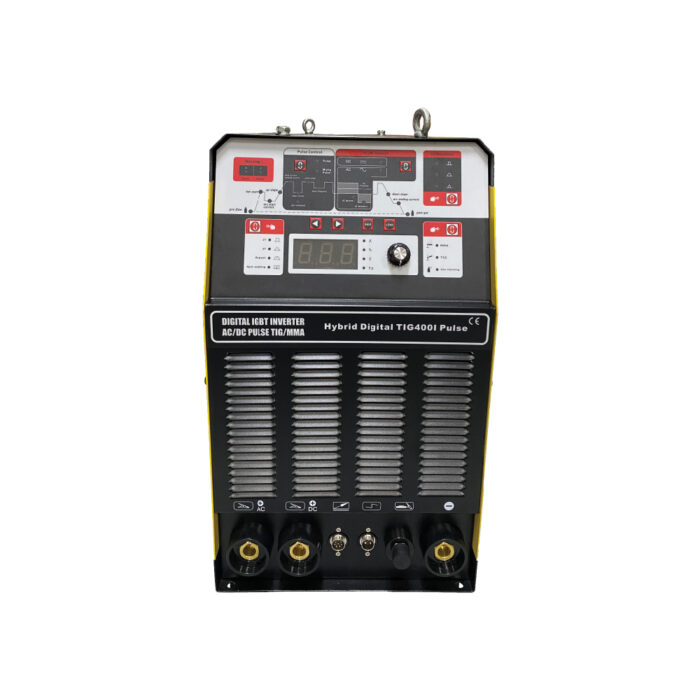

AUWELD HYBRID DIGITAL TIG400I AC/DC PULSE WELDING MACHINE 3PH/415V

Product Specification: Welding Process : MMA (SMAW) , TIG (GTAW) Input Power Voltage (V) : Three Phase, AC415V±10% Rated Input Power Capacity (kVA) : 15 (MMA), 10.6 (TIG) Input Voltage Frequency (Hz) : 50/60 No Load Voltage (V) : 77 Output Current Voltage (A) : 40 – 350 (MMA), 5 – 350(TIG) Post-Gas Time (s) : 0 – 10 (TIG) Pre-Flow Time (s) : 0 – 10 (TIG) Spot Welding (s) : 0 – 10 (TIG) Up-Slope (s) : 0 – 10 (TIG) Down-Slope (s) : 0 – 10 (TIG) Hot Start Current (A) : 10 – 350 (TIG) Arc-Striking Current (A) : 5 – 350 (TIG) Arc-Ending  Current (A) : 5 – 350 (TIG) Base Current (A) : 5 – 350 (TIG) Peak Current (A) : 5 – 350 (TIG) Clear Width (%) : 10 – 90 (TIG) Clear Depth (%) : -50 – 50 (TIG) Pulse Width (%) : 10 – 90 (TIG) Pulse Frequency (Hz) : 0.1 – 20 (TIG) AC Frequency (Hz) : 20 – 200 (TIG) Duty Cycle (%) : 60@40°C Product Dimensions : 622mm x 280 mm x 480 mm Product Weight : 40 kg Industrial Application : Maintenance Repair, Metal Fabrication, Shipyard, Oil & Gas Product Features: Microprocessor control; simple operation, more perfect welding performance. The unique air duct design; failure rate greatly reduced, extending the service life of the machine. Comprehensive protecting function; with the protection of overvoltage, under voltage, against lightning stroke, overcurrent, over heat etc. Pulsing adds arc stability; reduces heat input, warpage and able to increase travel speeds. Good arc stiffness, strengthening welding energy. Strong reverse cleaning ability, wide clear width, welding continuously without arc breaking at small current. Include Item(s): 1 pc WP18 TIG Torch (4m) 1 pc Welding Cable with Earth Clamp (2m) 1 pc HMG Argon Flowmeter Regulator
