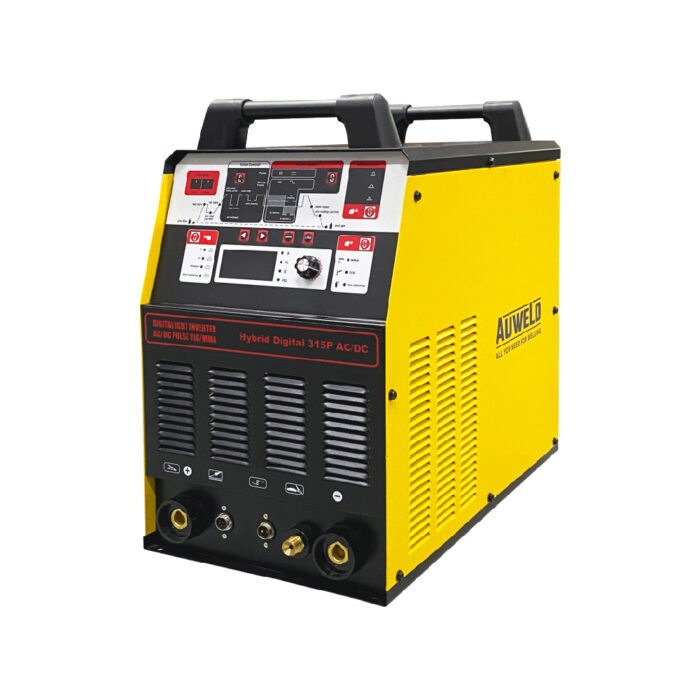

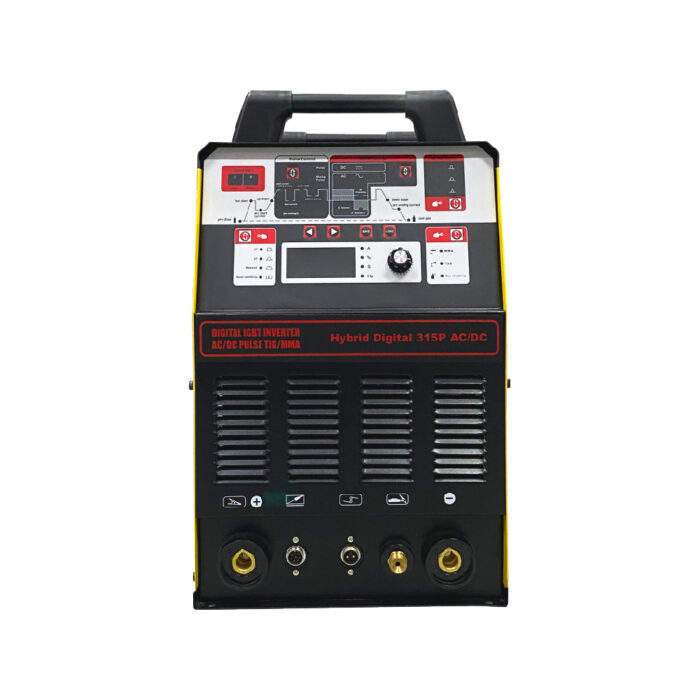

AUWELD HYBRID DIGITAL TIG315P AC/DC WELDING MACHINE 3PH/415V

Product Specification: Welding Process : MMA (SMAW) , TIG (GTAW) Input Power Voltage (V) : Three Phase, AC425V±10% Rated Input Power Capacity (kVA) : 7 (MMA), 4.6 (TIG) Input Voltage Frequency (Hz) : 50/60 No Load Voltage (V) : 67 Output Current Voltage (A) : 40 – 315 (MMA), 5 – 315(TIG) Post-Gas Time (s) : 0 – 10 (TIG) Pre-Flow Time (s) : 0 – 10 (TIG) Pulse Current (A) : 5 – 315 (TIG) Pulse Frequency (Hz) : 1 – 10 (TIG) AC Frequency (Hz) : 10 – 90 (TIG) Pulse Width (%) : 0.1 – 20 Duty Cycle (%) : 60 Product Dimensions : 500mm x 280 mm x 435 mm Product Weight : 26 kg Industrial Application : Maintenance Repair, Metal Fabrication Product Features: AC/DC – TIG, MMA, Pulse 4 in 1; much compact design for hand carry. Microprocessor control; simple operation, more perfect welding performance. Pulsing adds arc stability; reduces heat input, warpage and able to increase travel speeds. The unique air duct design; failure rate greatly reduced, extending the service life of the machine. Auto Protection; against over voltage, under voltage, default phase, lighting stroke, over current, over heat, and etc. Difference Output wave; to fulfill professional welding equipment. Include Item(s): 1 pc WP18 TIG Torch (4m) 1 pc Welding Cable with Earth Clamp (2m) 1 pc HMG Argon Flowmeter Regulator
