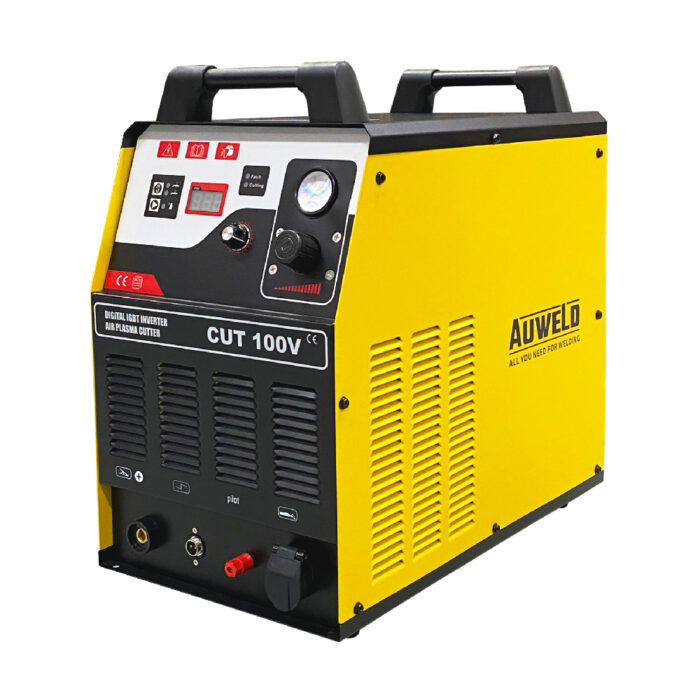

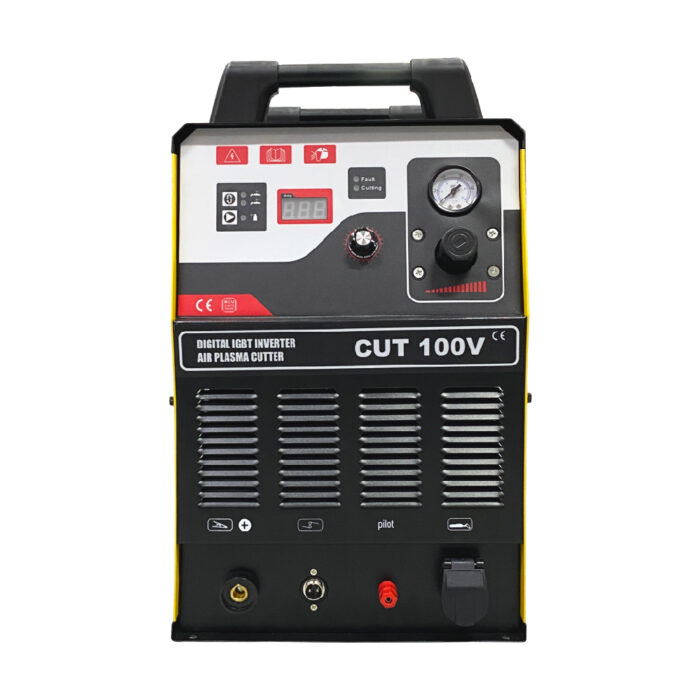

Product Specification: Welding Process : Air Plasma Cutting Input Power Voltage (V) : Three Phase, AC415V±10% Input Voltage Frequency (Hz) : 50/60 Rated Input Power Capacity (kVA) : 15.1 Rated Input Current (A) : 23 Output Current Range (A) : 5 – 100 Rated Output Voltage (V) : 120 No Load Voltage (V) : 311 Duty Cycle (%) : 60 Max Cutting Thickness (mm) : 40 Arc-Striking : Non-Contact Air Pressure (MPa) : 0.6 Power Factor (%) : 0.93 Insulation Class : F Product Dimensions : 500mm x 280mm x 435mm Product Weight : 28.3 kg Industrial Application : Maintenance Repair, Metal Fabrication Product Features: Low cost and energy saving. Pulse-width Modulation (PWM) technology; high frequency, high cutting speed. Post-flow Cooling Circuit; extend the life of the consumables and torch by cooling them with post-flow air after the trigger is released (15-20s). Long consumable life; new heavy duty electrode and nozzle design save your money in the long run basis. Adjustable cutting current; application to different material, thickness, and cutting speed. Thermal overload protection with indicator light; helps prevent machine damage if the duty cycle is exceeded or airflow is blocked. Include Item(s): 1 pc PT80 Plasma Torch (5m) 1 pc Welding Cable with Earth Clamp (2m) 1 pc Air Filter ; 1pc Air Hose (3m) 2 pcs Hose Clips
