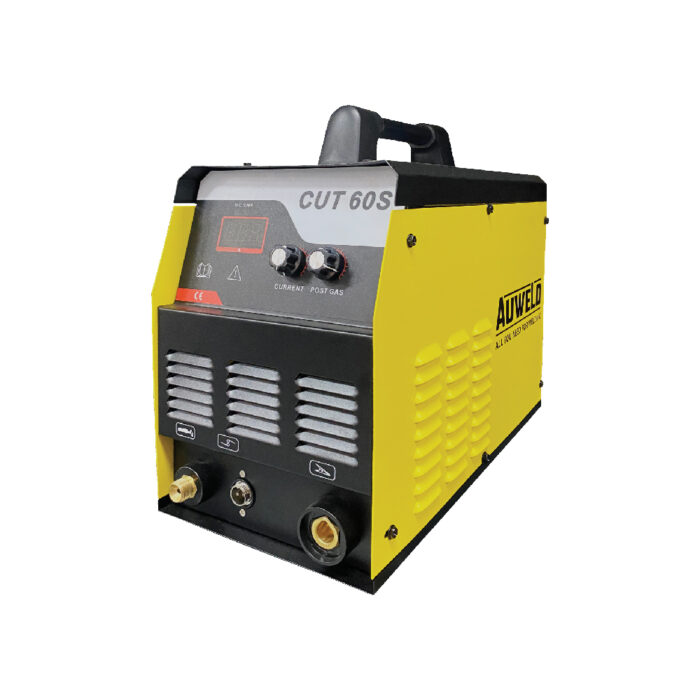

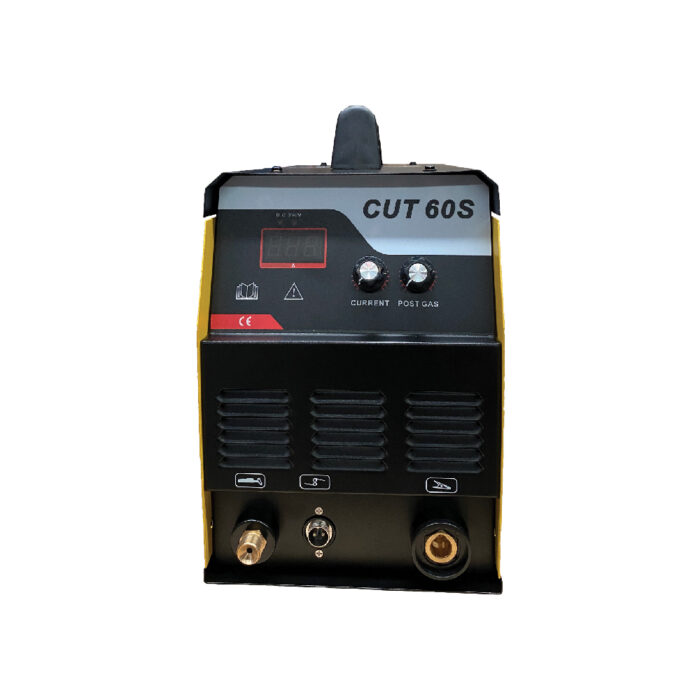

AUWELD CUT60S PLASMA CUTTING MACHINE 1PH/220V
$33.9
$64.75
Product Specification: Welding Process : Air Plasma Cutting Input Power Voltage (V) : Single Phase, AC220V±15% Input Voltage Frequency (Hz) : 50/60 Rated Input Power Capacity (kVA) : 7.9 Rated Input Current (A) : 35.9 Output Current Range (A) : 25 – 60 Rated Output Voltage (V) : 104 No Load Voltage (V) : 273 Duty Cycle (%) : 60 Post-gas Time (s) : 2 – 10 Max Cutting Thickness (mm) : 25 Arc-Striking : Touch Air Pressure (MPa) : 0.4 – 0.6 Power Factor (%) : 0.93 Insulation Class : F Product Dimensions : 400mm x 195mm x 270mm Product Weight : 9 kg Industrial Application : Maintenance Repair, Metal Fabrication Product Features: Low cost and energy saving. Pulse-width Modulation (PWM) technology; high frequency, high cutting speed. Post-flow Cooling Circuit; extend the life of the consumables and torch by cooling them with post-flow air after the trigger is released (15-20s). Long consumable life; new heavy duty electrode and nozzle design save your money in the long run basis. Adjustable cutting current; application to different material, thickness, and cutting speed. Thermal overload protection with indicator light; helps prevent machine damage if the duty cycle is exceeded or airflow is blocked. Include Item(s): 1 pc AG60 Plasma Torch (5m) 1 pc Welding Cable with Earth Clamp (2m) 1 pc Air Filter ; 1pc Air Hose (1m) 2 pcs Hose Clips
