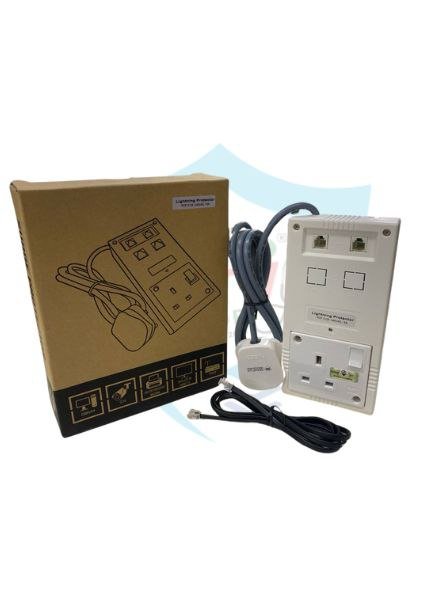

DescriptionAC Power Supply : – Nominal Operating Voltage : 230Vac – Maximum Allowable Operating Voltage : 275Vac – Maximum Current / Load : 5A / 1000W – Clamping Voltage (L-N/L-E/N-E) : 430V±10% – When Severe Struck : Open CircuitTelephone Line : – Nominal Operating Voltage : 48~200Vdc – Breakdown Voltage (L1-L2/L1-E/L2-E) : 200V±15% – When Severe Struck : Open CircuitNetwork Line : – 10 / 100 / 1000 Mixed DC & Data (Mode A)– Nominal Operating Voltage (Un) : 5Vdc – Maximum Continuous Operating Voltage(Uc) : 8Vdc – Breakdown Voltage – Lines to Ground : 75V±10% – Breakdown Voltage – Pair to Pair : 150V±10% – Frequency : 10 / 100 / 1000M – Lines Configuration : 1&2,3&6 – When Severe Struck : Open Circuit*Low impedance with no noticeable signal loss for broadband & Network line * Over current and over voltage protection
