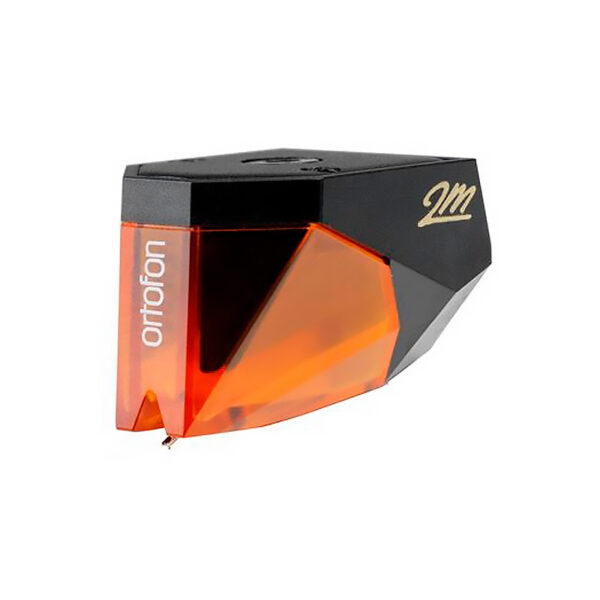

Ortofon 2M Bronze Cartridge

Output voltage at 1000 Hz, 5cm/sec.  –  5 mV Channel balance at 1 kHz  –  1 dB Channel separation at 1 kHz  –  26 dB Channel separation at 15 kHz  –  15 dB Frequency range at – 3dB  –  20-29.000 Hz Frequency response  –  20-20.000 2 / – 0 dB Tracking ability at 315Hz at recommended tracking force  –  80 µm Compliance, dynamic, lateral  –  22 µm/mN Stylus type  –  Nude Fine Line Stylus tip radius  –   r/R 8/40 µm Tracking force range  –  1.4-1.7 g (14-17 mN) Tracking force, recommended  –  1.5 g (15 mN) Tracking angle  –  20° Internal impedance, DC resistance  –  1.2 kOhm Internal inductance  –  630 mH Recommended load resistance  – 47 kOhm Recommended load capacitance  –  150-300 pF Cartridge colour, body/stylus  –  Black/Bronze Cartridge weight  –   7.2 g 2M PnP MkII cartridge with integrated headshell weight  –  20 g 2M PnP MkII cartridge with integrated headshell length – 52 mm
